SPHERICAL ROLLER BEARING

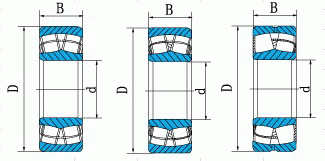

230.../230...K/230...W33
| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
| d | D | B | C | Co | kg | |||
| 23022 | 23022 K | 23022 W33 | 110 | 170 | 45 | 304 | 489 | 3.79 |
| 23024 | 23024 K | 23024 W33 | 120 | 180 | 46 | 317 | 514 | 4.10 |
| 23026 | 23026 K | 23026 W33 | 130 | 200 | 52 | 401 | 660 | 6.02 |
| 23028 | 23028 K | 23028 W33 | 140 | 210 | 53 | 415 | 689 | 6.43 |
| 23030 | 23030 K | 23030 W33 | 150 | 225 | 56 | 467 | 789 | 7.81 |
| 23032 | 23032 K | 23032 W33 | 160 | 240 | 60 | 538 | 917 | 9.56 |
| 23034 | 23034 K | 23034 W33 | 170 | 260 | 90 | 800 | 1470 | 17.60 |
| 23036 | 23036 K | 23036 W33 | 180 | 280 | 74 | 702 | 1170 | 17.30 |
| 23038 | 23038 K | 23038 W33 | 190 | 290 | 75 | 781 | 1360 | 18.20 |
| 23040 | 23040 K | 23040 W33 | 200 | 310 | 82 | 867 | 1470 | 23.30 |
| 23044 | 23044 K | 23044 W33 | 220 | 340 | 90 | 1030 | 1790 | 31.00 |
| 23048 | 23048 K | 23048 W33 | 240 | 360 | 92 | 1130 | 2080 | 34.30 |
| 23052 | 23052 K | 23052 W33 | 260 | 400 | 104 | 1420 | 2520 | 49.80 |
| 23056 | 23056 K | 23056 W33 | 280 | 420 | 106 | 1480 | 2710 | 53.80 |
| 23060 | 23060 K | 23060 W33 | 300 | 460 | 118 | 1810 | 3280 | 74.50 |
